app guide · every call gets a receipt

Using MedFlow Copilot
the app behind the course

MedFlow Copilot is the course's lab bench: a prior-authorization portal where clinicians review requests — with an AI copilot whose every call produces a Token Receipt. This page is the operator's manual: how to run it, what each screen does, and how to read the instrument. All screenshots below are real captures of the running app in replay mode.

1 · Run it (no API key needed)

# terminal 1 — backend (port 8080, replay mode is the default)
cd app/api && ./mvnw spring-boot:run

# terminal 2 — frontend (port 5173)
cd app/ui && npm install && npm run dev

Open http://localhost:5173. Replay mode answers the ten standing questions from recorded fixtures with deterministic usage numbers — the banner in the Copilot panel reminds you. Live mode: set ANTHROPIC_API_KEY and MEDFLOW_LIVE=1 before starting the backend.

Frontend without a backend? VITE_MOCK=1 npm run dev runs a standalone demo with illustrative mock numbers — fine for UI exploration, but course labs use the real backend's replay numbers.

2 · The screens

Review Queue — where every session starts

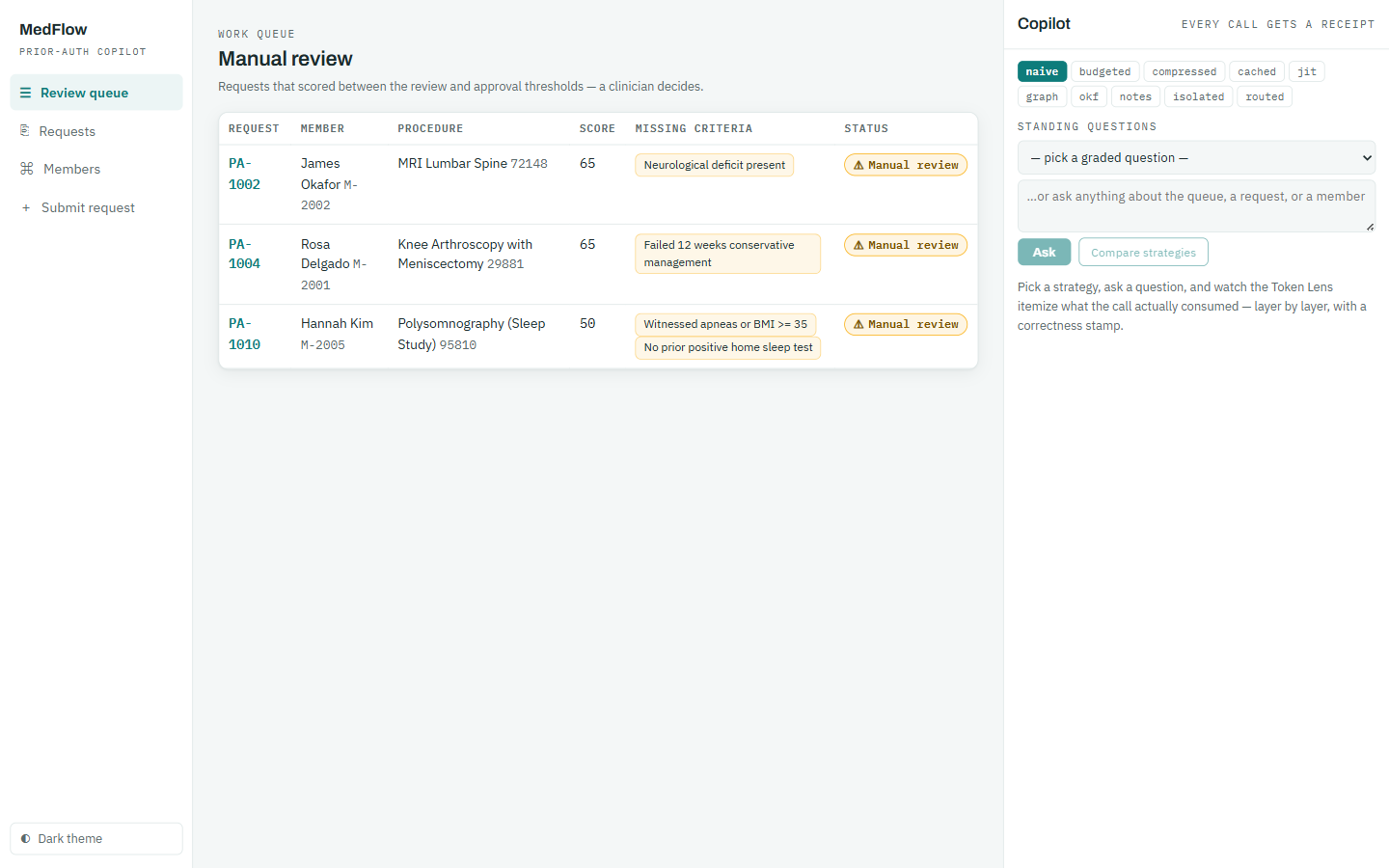

Review queue with three manual-review requests and the Copilot panel — The Manual Review queue: requests that scored between the review (50) and approval (80) thresholds, each with its missing-criterion chips (PA-1002 · 65, PA-1004 · 65, PA-1010 · 50). The Copilot panel rides on the right of every screen.

The Copilot panel & the Token Lens

Token receipt for a naive-mode ask — Ask Q1 in naive mode and the receipt itemizes the bill: System 65 · Retrieved 1,612 · Tool 0 · History 0 · User 17 = **1,694 input tokens**, output, cost, cache %, latency — and the stamped verdict. The five layers always sum to the total; that reconciliation rule is the instrument's oath.

Receipt element	Meaning
Five layer lines	System prompt · retrieved domain data · tool results · conversation history · your question — the course's unit of account (U00–U01)
✓ VERIFIED / ✗ FAILED / – UNGRADED	Graded against the standing question's answer key; hover a FAIL to see which facts went missing. Free-form questions are ungraded — and ungraded numbers can't prove savings claims.
cache read %	How much of the input was served from prompt cache (the cached mode's whole story, U06)
Session strip	Running total + per-call sparkline; watch it flatten under compaction modes (U08)

Strategy toggles — the curriculum as switches

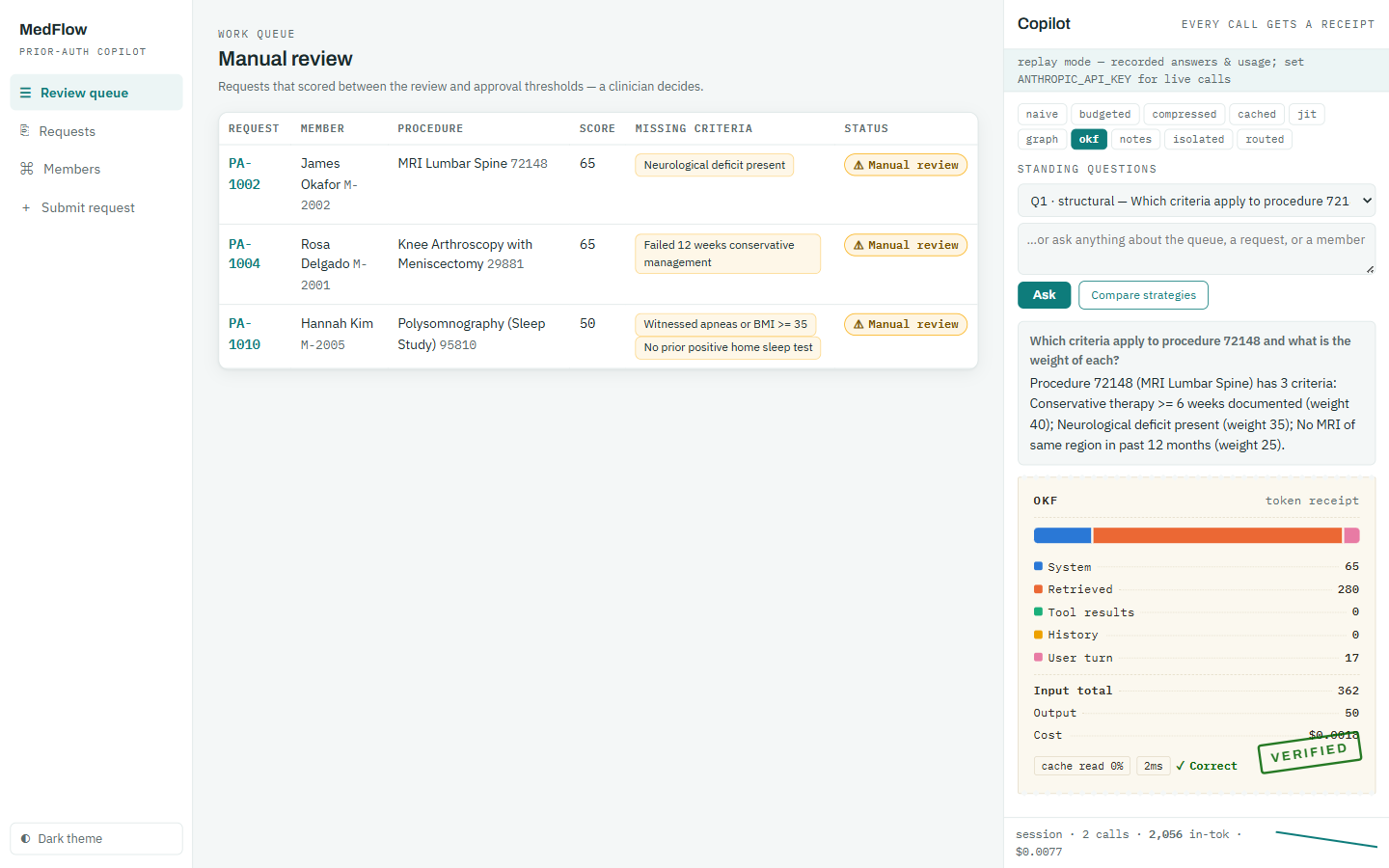

okf-mode receipt for the same question — Same question, okf mode: the retrieved layer collapses to one canonical concept. Every toggle maps 1:1 to a course module.

Mode	Strategy (module)	Median tokens*
naive	the control — dump everything (U00)	1,696 · fails Q7
budgeted	per-layer caps + eviction (U07)	560
compressed	prune → extract → abstract + fidelity assert (U07)	231 · fails Q9
cached	static-first + prompt caching (U06)	731 (cheap when warm)
jit	just-in-time identifiers (U05)	251
graph	provenance-tagged knowledge graph (U05)	444
okf	canonical concept files (U05)	186
notes	structured note-taking memory (U03)	198
isolated	clean-window sub-agent (U09)	1,805 — isolation's honest single-question price
routed	route-only-among-correct (U12)	239 at 100%

* medians across the 10 standing questions, replay mode (source=synthetic-pre-recording); regenerate with the U02 lab.

The Compare drawer — the money shot

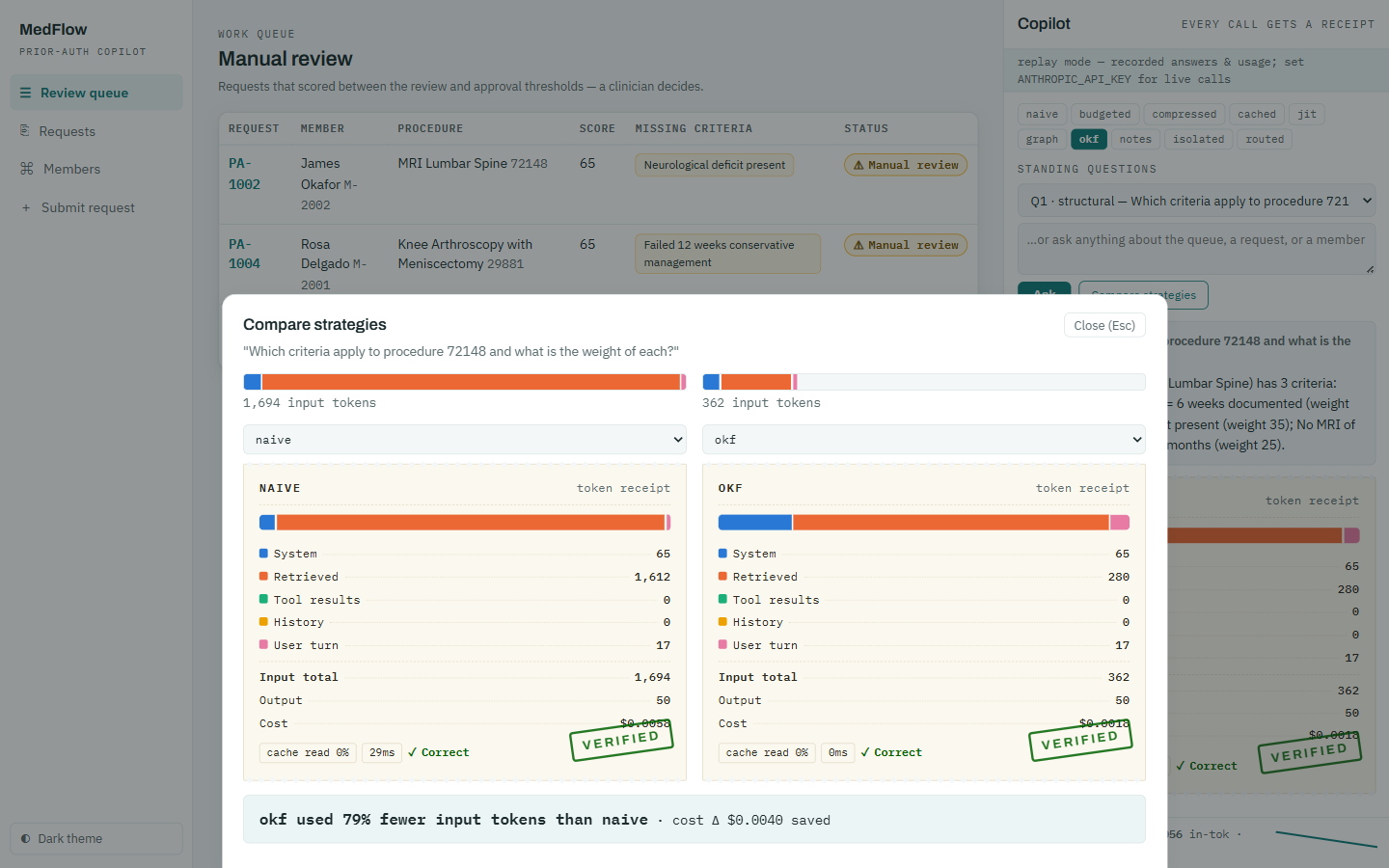

Compare drawer: naive vs okf side by side — Pin a question, pick two strategies, and compare receipts on a shared scale — 1,694 vs 362 input tokens here, with both verdicts side by side. If an arm failed its key facts, the drawer prints **“FAILED — savings void”** instead of celebrating the delta.

Members — where the abstention story lives

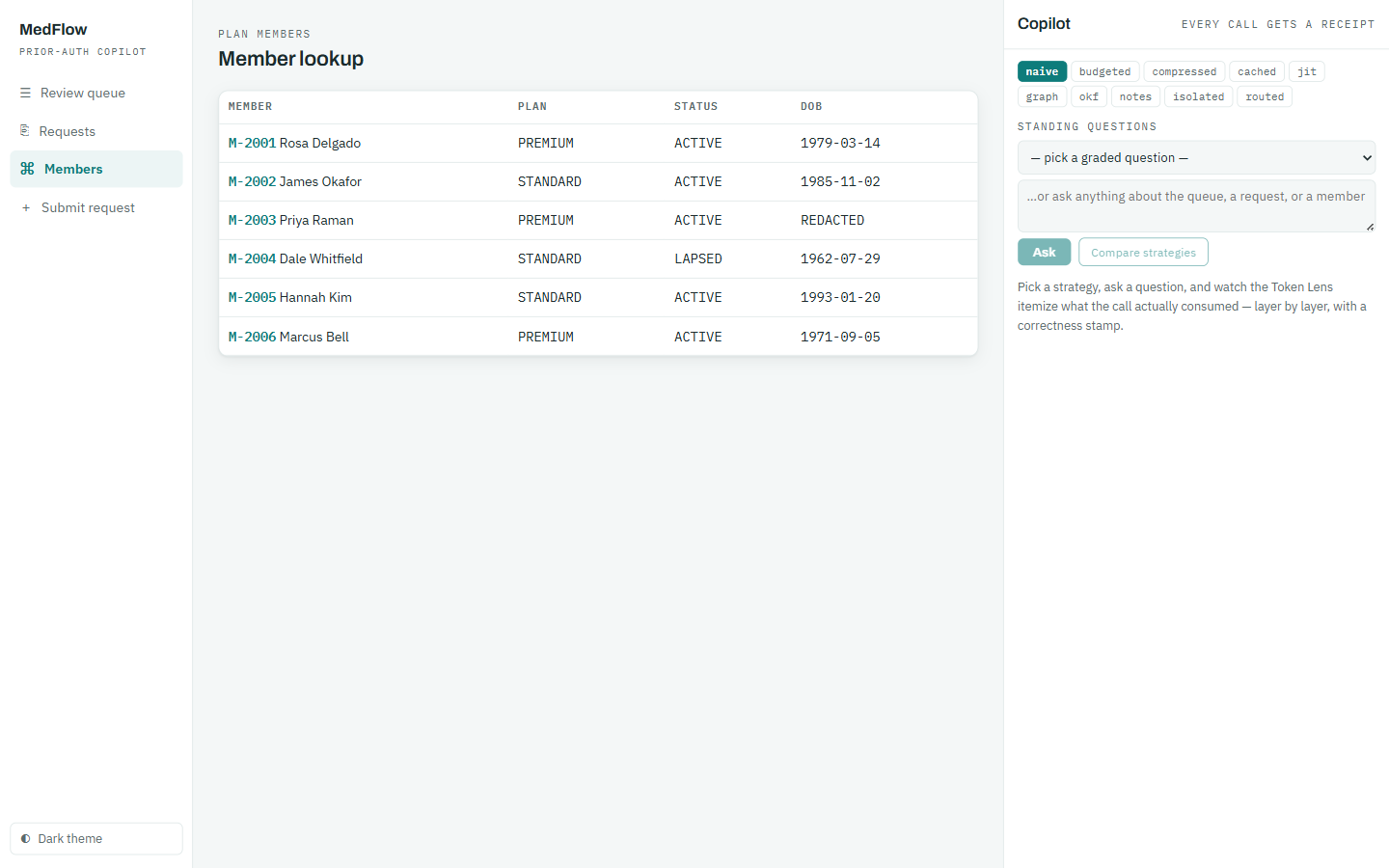

Members list with the redacted DOB badge — M-2003's date of birth is PHI-redacted. Ask the copilot for it in okf mode → a proper refusal (✓ PASS at 157 tokens). In naive mode the shipped teaching fixture fabricates a DOB and the stamp catches it (✗ FAIL, forbidden-pattern named) — module U10's exhibit.

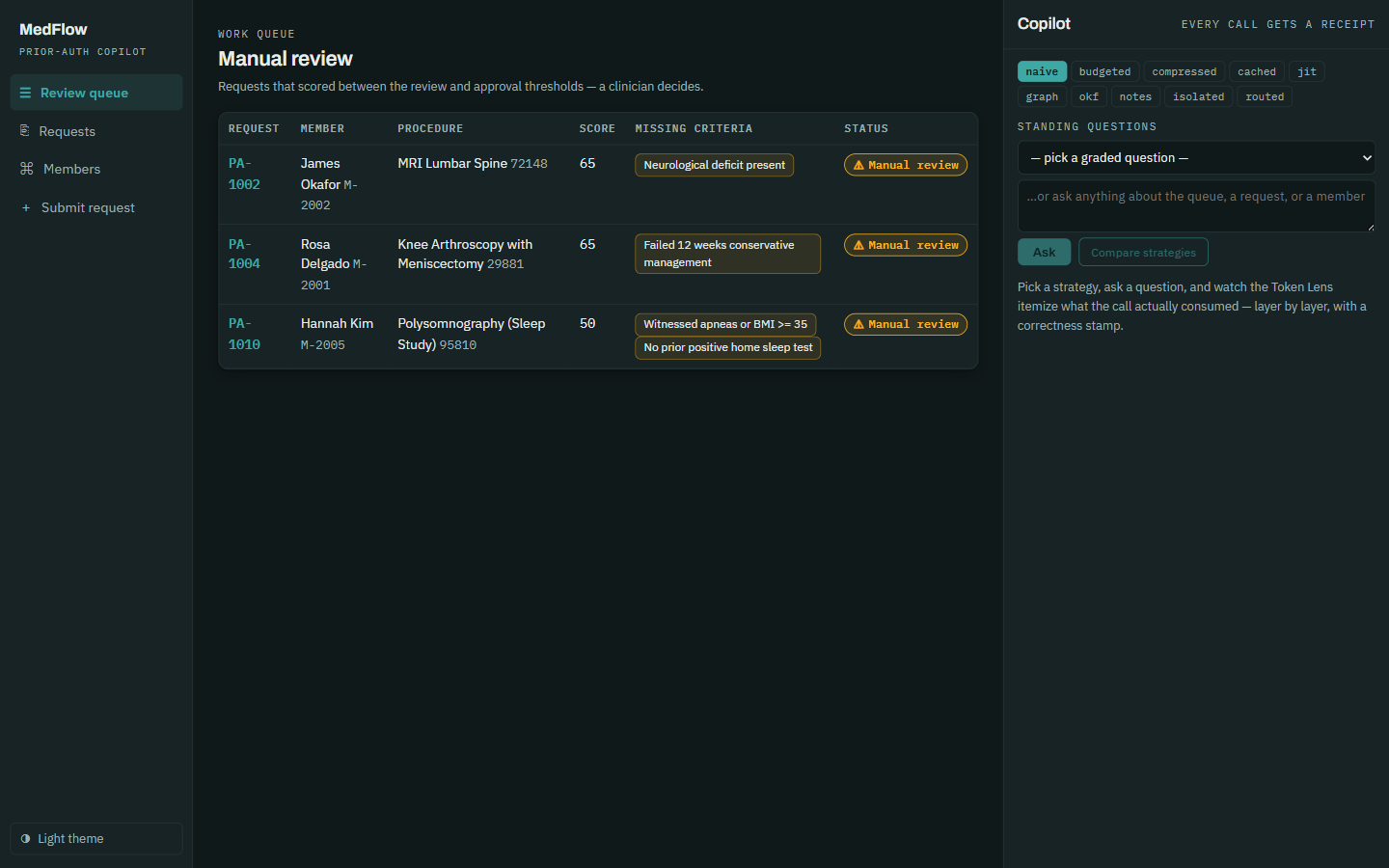

Dark theme

3 · The five-minute working loop

1. Pick a standing question (the preset dropdown — these are the graded ones)
2. Ask it in naive         → read the receipt: where do the tokens live?
3. Flip one strategy       → re-ask: which layer shrank? did the verdict hold?
4. Compare the two         → the drawer shows the delta AND both verdicts
5. Believe only ✓-stamped savings — a FAILED cheap answer is worth nothing

4 · Troubleshooting

Symptom	Fix
Copilot answers "replay mode" to free-form questions	Expected — replay covers the standing questions; go live for free-form (`ANTHROPIC_API_KEY` + `MEDFLOW_LIVE=1`)
Receipt numbers differ from this page	You're in `VITE_MOCK=1` (illustrative numbers) — or fixtures were re-recorded live. The reconciliation rule holds either way.
Port 8080/5173 busy	Stop the previous instance; the backend must be restarted after fixtures change (U11's startup-cache lesson)
Layers don't sum to the total	They must — file a bug; that invariant is test-enforced (`ReceiptReconciliationTest`) and the U00 lab's auditor will catch it

Provenance reminder: replay-mode numbers are deterministic synthetic-pre-recording fixtures — correct by construction, honest about their source. Recording live fixtures (one command, ~$2) upgrades every receipt to real model usage; the course's claims are framed so they survive either way.

← Back to the course · Start with U00 — your first receipt · Full setup: SETUP.md
